Gilbarco

Tank Automation Solutions

Gilbarco Tank Otomasyon Sistemi Nedir?

Gilbarco tank otomasyon yazılımı, Gilbarco pompa otomasyon sistemi ve Gilbarco market otomasyon sistemi ile tam online entegre bir yazılımdır. Bu yazılım sektördeki birçok tank otomasyon sistemi ile entegre haldedir ve istasyonda hangi tank otomasyonu olursa olsun, kullanıcı farklı sistemlere aynı yazılımla eriştiği için ciddi bir kullanım kolaylığı söz konusudur.

In addition, in line with the information received from tank automation systems, it reports tank inventories, alarms, fillings, tank leak tests, instant inventories, etc.

Tank kontrol ünitelerinin sınırlı depolama kapasitesinin yanında, Gilbarco tank otomasyon yazılımı sayesinde bu bilgiler otomasyon sistemine kaydedilir ve yıllarca oluşan tüm olaylar kayıt altına alınmış olur.

Gilbarco tank otomasyon yazılımının diğer bir üstünlüğü de tankların otomatik kalibrasyonunu yapmasıdır. Tank otomasyon sistemleri, istasyonlara takılmalarının ardından, hangi sistem kullanılırsa kullanılsın tank kalibrasyonu gerektirir. Tank kalibrasyonu tank başı ortalama 8 saat süren, tanker kiralama ihtiyacı gerektiren ve satışın durdurulması ihtiyacını doğuran bir uygulamadır.

Gilbarco tank otomasyon yazılımı ise kalibrasyonu, istasyon satış yaparken otomatik olarak yapar. Böylece hem zamandan ve maliyetten tasarruf sağlanmış olur, hem de fiziki kalibrasyona nazaran daha hassas ve yüksek kalibrasyon yapılmış olur.

Easy Multi-Tiered Reporting

All tank movements, alarm, filling, leakage, etc. tank record details are reported in a filterable way. Reports can be both general reports in ready-made format and reports defined by users in custom format.

ALL DATA

TRACKS!

It connects to Vehicle Identification Reader and card readers with IKU vehicle recognition software and monitors the Vehicle Identification System and Driver/Pumping System. Wireless gun readers attached to the pump gun detect the Vehicle Identification Unit in the tank when the gun is attached to the vehicle's tank. During the process, the fuel type of the vehicle and the amount of fuel it can take are checked and refueling is approved. The mileage and engine hours on the Datapass are transferred instantly with the refueling. Refueling is automatically interrupted when the gun is removed from the tank.

Tank Automation System

Full Integration with All Brands

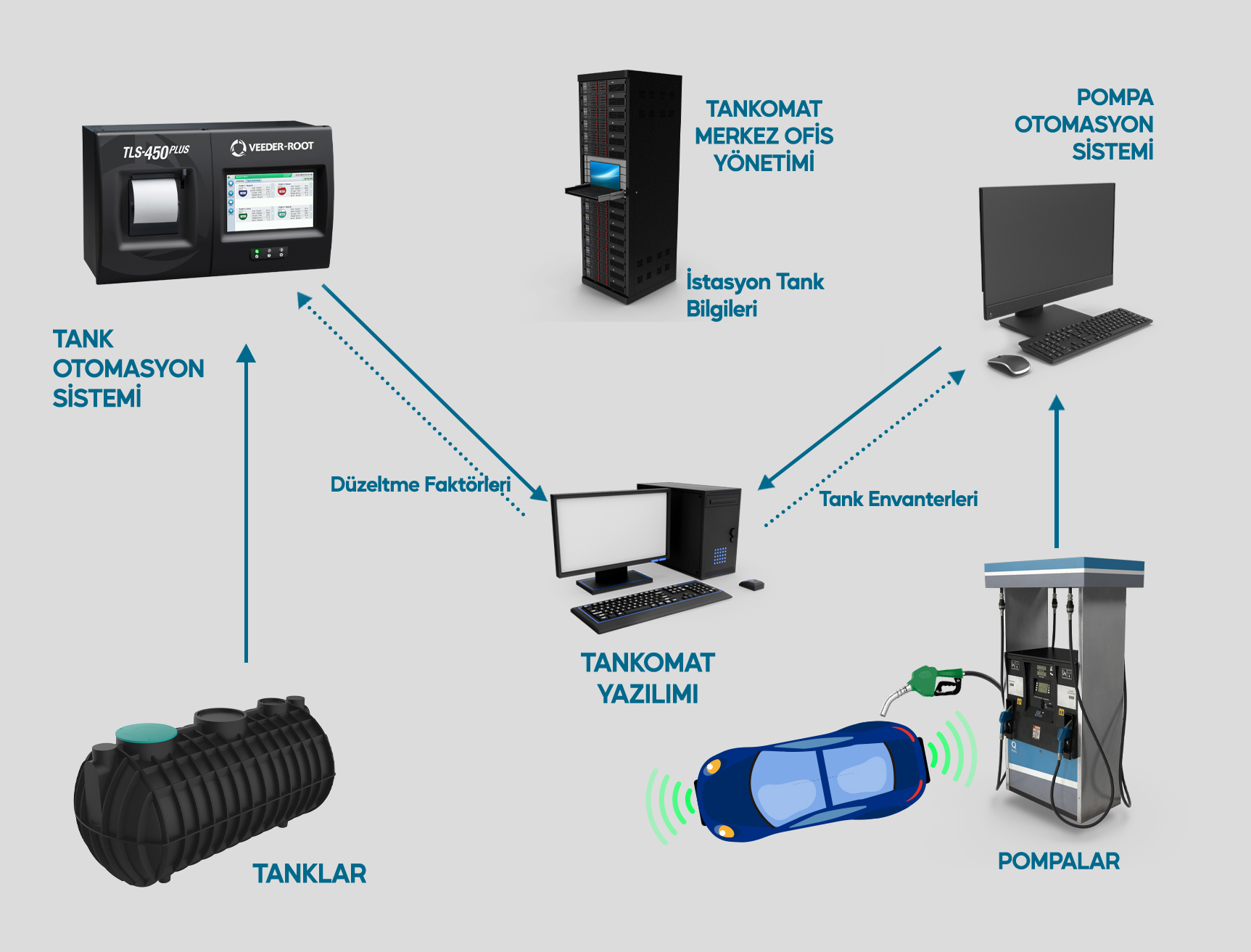

Carries the data received by the tank device from the tanks to the computer and controls them. When the device type is selected in the program, it applies the command strings by acting in accordance with the features of the relevant device. Creates and displays the database in accordance with the information capacity of the Tank device by adapting to the Alarm and Calibration modules.

Tank Leak DetectionMagnetostrictive Plus Probe

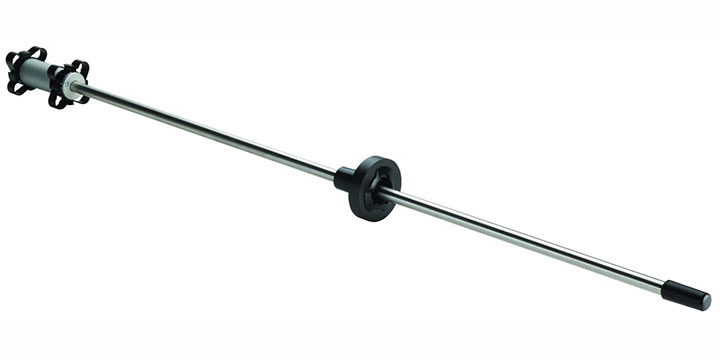

The Magnetostrictive (MAG) Plus Probe is installed in underground storage tanks to provide inventory control and leak detection data to a tank monitoring system.

Certified for inventory control and in-tank leak detection. This in-tank probe solution is certified to US EPA performance standards and can accommodate 2, 3 and 4-inch float kits.

A product that combines quality and high performance with a long service life while offering fast and accurate leak monitoring and detection.

Review Product

Optional In-Tank Water DetectionMagnetostrictive Plus Probe

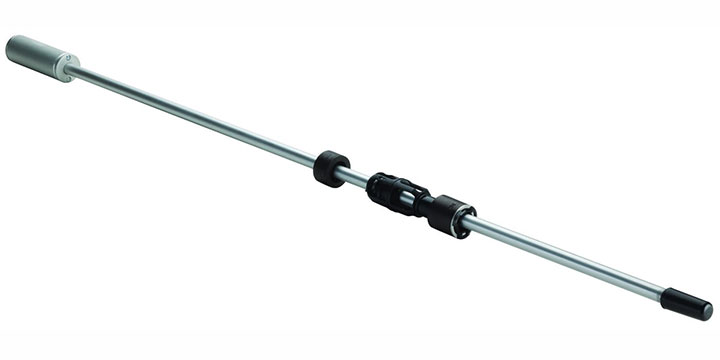

The Veeder-Root Magnetostrictive (MAG) Plus In-Tank Probe includes a water sensing option for inventory control. It is designed for both aboveground and underground storage tank applications requiring reliable and accurate inventory readings.

Our Magnetostrictive (MAG) Plus Probes provide the most reliable solution in the industry to tackle harsh environments in industrial, commercial and retail applications, while ensuring trouble-free performance.

Review Product

Measure Fuel DensityMagnetostrictive Density Probe

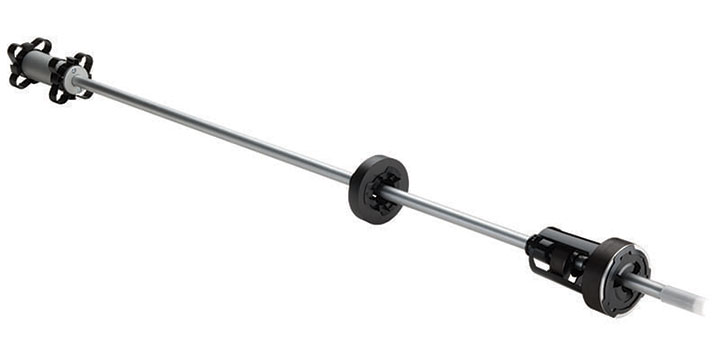

The Magnetostrictive Density (MAG-D) In-Tank Probe with optional 0.1 and 0.2 GPH in-tank leak detection and water monitoring capabilities can be configured for several different tank applications.

The MAG-D probe measures fuel density to detect substandard fuel consumption. The Veeder-Root MAG-D probe features a special float system and is a cost-effective and practical way to continuously measure the density of fuel.

Review Product

Designed for Alternative Fuel EnvironmentsMagnetostrictive Plus Probe

The Magnetostrictive (MAG) Plus Probe for alternative fuels/liquids is made of stainless steel tubing and can be configured for many different tank applications.

It is certified for inventory control, in-tank leak detection and water detection in multiple liquids including gasoline, diesel and liquids containing up to 100% alcohol. When used in underground storage tank applications, the in-tank probe solution is certified to US EPA performance standards and can accommodate 2", 3" and 4" float kits.

Using magnetostrictive sensing technology, the MAG Plus Probe for Alternative fuels/liquids gives tank owners the visibility to measure and identify multiple liquid readings such as height, liquid temperature and water.

Review Product

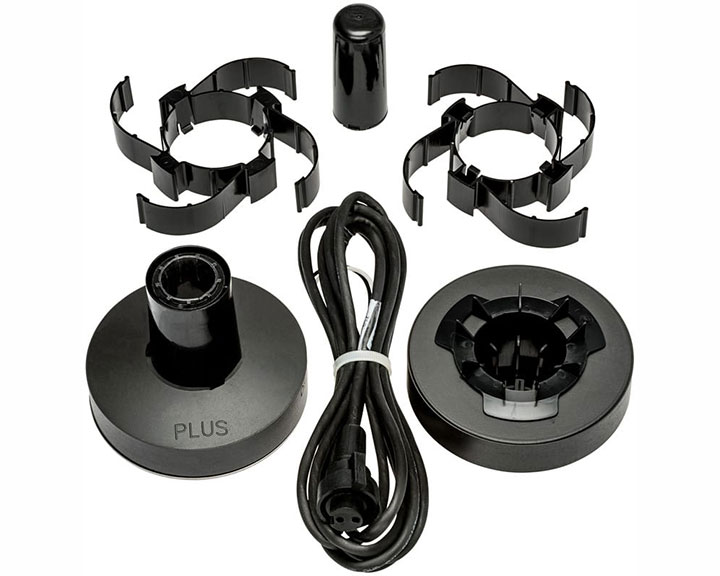

Correct Buoy KitMAG Plus In-Tank Probe Installation Kits

Veeder-Root MAG Plus Probe Installation Kits provide a proven float technology system that meets specific fluid materials requiring inventory and on-demand water monitoring

MAG Plus Probe Installation Kits are available in 4" (except for gas, use the Phase-Two Separation Float kit instead), 3" and 2" float configurations.
All kits include a product float, water float (except Alternative Fluid kits*), Probe insulation sleeve, two ¾" adjustable adapters and cable. 2" kits also include two 2" non-adjustable adapters. In addition, the test times of the 3" and 2" float kits gave much longer results.

Review Product

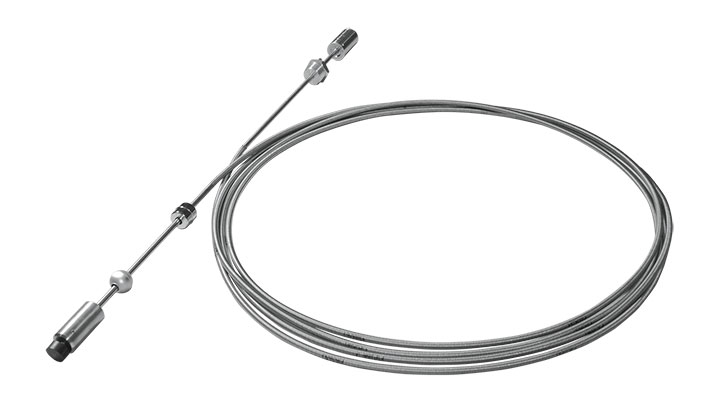

Monitor Aboveground Storage TanksMagnetostrictive Mag-FLEX Long Tank Probe

Mag-FLEX is specifically designed for the monitoring of above-ground storage tanks. It uses the proven Veeder-Root magnetostrictive probe technology, installed in more than 500,000 tanks worldwide.
Gilbarco destek ağı ve güvenilirliği ile desteklenen güçlü, uygun fiyatlı bir envanter yönetimi sistemi oluşturmak için herhangi bir Veeder-Root otomatik tank göstergesiyle eşleştirilebilir.
This above-ground solution enables accurate reconciliation of your most expensive assets in the field without the need to climb to great heights to determine inventory levels.

Review Product

Stock Management

Stock information

Filling detection

Filling detection

Alarm detection

Alarm detection

Automatic calibration

Automatic calibration

Management of Fuel Stocks

Management of Fuel Stocks

Leakage Test in Pressure Lines

Leakage Test in Pressure Lines

Advanced Monitoring

Monitoring of Intra-Router and Observation Wells

Real Time Analysis

Real Time Inventory Analysis

Centralized Control

Control of Fuel Tanks in Stations from the Oil Company Headquarters

Product Level Tracking

Sending Product Level Information in Fuel Tanks at the Stations Every Hour (Desired Period Can Be Set)

Centralized Data Sharing

Transmitting all kinds of data such as Product Level, Water Level, Calibration Status to the Center

Alarm Status Monitoring

Monitoring Alarm Conditions

Main Screen

Instant data for all tanks in the station are displayed on an easy-to-use main screen. Data such as stock height and volume, height percentage and fullness, water height and volume, tank temperature, empty volume, tank name, fuel type, product name, etc. are displayed collectively on the screen.

Filling Tracking

Fills are recorded electronically, both in terms of actual temperature and in a 15 C compensated manner. The system gives the user access to all information about the filling and the filling data can be stored and checked at any time.

Automatic Calibration

Thanks to automatic calibration, the volume-height functions of the tanks in the system are checked and corrected online. New volume-height tables are created. In this way, the fuel quantities in the tanks are measured more accurately and precisely.

Shift Closure and Reconciliation

Tank shifts are closed in parallel with the pump shift at shift changeover. In this way, the amount of fuel coming out of the tanks and the amount coming out of the pumps in the same shift are compared. Pump-Tank reconciliation reports are created.

Leakage Tests

Any leakage is automatically detected by the system and communicated to the user. The detection of leakage can be done by the user by stopping the pumps or by the system automatically measuring the leakage at stationary times.

Alarms

All alarms (high - low heat or fuel, high water, all dangerous situations, etc.) are detected by the system and transmitted to the user. Data is electronically stored in the system and can be analyzed and reported retrospectively.

Remote Liquid Stock Management

Alarm, dolum, sızıntı durumları, tankların kalibrasyonları, gerektiği takdirde tekrar kalibre edilmeleri ve diğer fonksiyonların yönetilmesi Gilbarco tarafından özel olarak kurulan CentrOtank merkezinde sağlanır ve  sıvı tanklarınızı ve detaylarınızı sizin adınıza kontrol eder.
